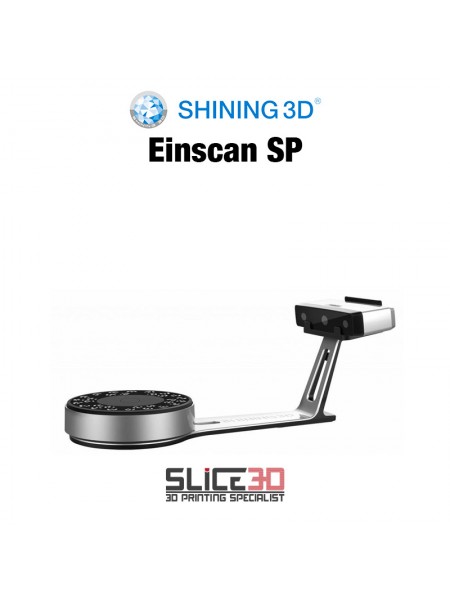

Shining3D - EinScan SP
Avec le scanner 3D SP, scannez plus grand, plus rapide, plus précis ! Dans la même lignée que le scanner Einscan-SE, le scanner 3D SP affiche une experience de scan intuitive et 2 fois plus rapide. Il permet de scanner des pièces mécaniques comme organiques avec une précision allant à plus de 50 microns (0.05mm) !
2 770,90 €
2 770,90 € TVAC
2 290,00 € HTVA
TTC
Shining3D - EinScan SP
Shining3D - EinScan SP
EinScan SP Spécifications Techniques
| Scan Mode | Fixed Scan | Auto Scan | |
|---|---|---|---|
| Mode of Alignment | Feature; Markers; Manual | Turntable, Markers, Manual, Turntable Coded Target | |
| Single Shot Accuracy | ≤0.05 mm | ||
| Minimum Scan Volume | 30 × 30 × 30 mm | ||
| Maximum Scan Volume | 1200 ×1200×1200mm | 200×200×200mm | |
| Range of Single Capture | 200×150 mm | ||
| Scan Speed | <4 s | ||
| Point Distance | 0.17 mm ~ 0.2 mm | ||
| Texture | Yes | ||
| File Format | OBJ, STL, ASC, PLY | ||
| Camera Resolution | 1.3 Mega Pixels | ||
| Light Source | White Light | ||
| Stand-off Distance | 290 ~ 480 mm | ||
| Computer Requirements (Required) | USB: 1 ×USB 2.0 or 3.0;OS: Win7, Win8, Win10 (64 bit);CPU: Dual-core i5;RAM: 8 G | ||
| Computer Requirements (Recommended) | Graphics card: Nvidia series (GTX 660 or higher) Graphic memory > 2G;RAM: 16 G | ||
| Weight (unpacked) | 4.2 kg | ||
| Weight (packed) | 7.0 kg | ||
| Dimension | 570×210×210 mm | ||
| Power Supply | 40 w | ||
| Input Voltage | DC：12 v, 3.33 A | ||
| Calibration Board | HD | ||
| Turntable | Turntable with markers | ||
| Load Capacity of Turntable | 5 kg | ||
