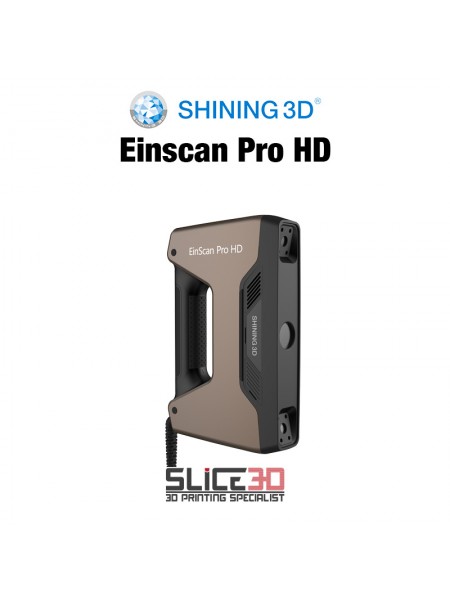

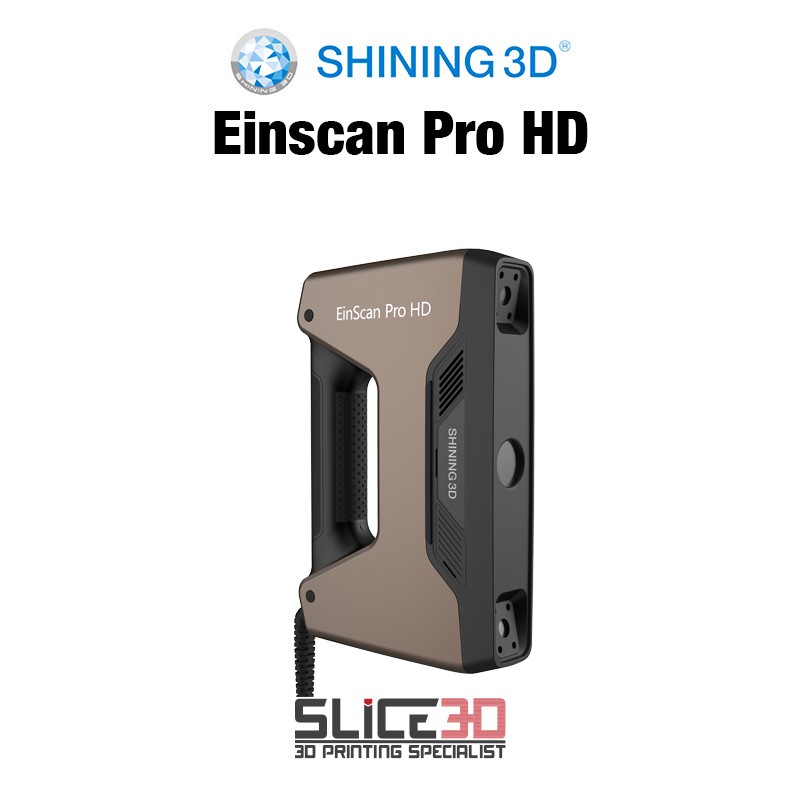

Shining3D - EinScan Pro HD
Le scanner Einscan Pro HD de la marque Shining 3D est un scanner 3D portable de la série Einscan Pro offrant des performances inégalées dans la numérisation 3D de haute résolution. Grâce à un réglage de la distance minimale de 0,2 mm avec un algorithme optimisé, il apporte une résolution et une précision élevées en numérisation à la main aussi bien qu'en numérisation fixe. Une polyvalence exceptionnelle et des optimisations puissantes se combinent pour une expérience de numérisation 3D à haut rendement et de qualité professionnelle. Avec ce scanner 3D, vous aurez moins de limitations pour scanner une surface métallique sombre. En plus, sa rapidité de scan vous permettra d'être plus efficace pour votre projet.
Shining3D - EinScan Pro HD
Shining3D - EinScan Pro HD
EinScan Pro HD Spécifications Techniques
| Scan Mode | Handheld HD Scan | Handheld Rapid Scan | Fixed Scan with Turntable (with Add-on: Industrial Pack) | Fixed Scan without Turntable (with Add-on: Industrial Pack) |
|---|---|---|---|---|
| Scan Accuracy | up to 0.045 mm | up to 0.1 mm | 0.04 mm(single shot accuracy) | 0.04 mm(single shot accuracy) |
| Volumetric Accuracy* | 0.3 mm/m (Markers Alignment) | 0.3 mm/m (Markers Alignment) | / | / |
| Scan Speed | 10 frames/s; 3,000,000 points/s | 30 frames/s; 1,500,000 points/s | Single Scan＜0.5s | Single Scan＜0.5s |
| Point Distance | 0.2 mm-3 mm | 0.25 mm-3 mm | 0.24 mm | 0.24 mm |
| Single Scan Range | 209*160 mm——310*240 mm | |||
| Depth of Field | ±100 mm | |||
| Working Distance | 510 mm | |||
| Light Source | LED | |||
| Align Mode | Markers Alignment Feature Alignment[2], Hybrid Alignment[3] | Markers Alignment, Texture Alignment[4], Feature Alignment, Hybrid Alignment | Turntable Coded Targets, Feature, Markers, Manual Alignment | Markers, Feature, Manual Alignment |
| Texture Scan | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) | Yes (with Add-on: Color Pack) |
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | |||
| Special Scan Object | For the transparent, highly reflective or some dark objects, please spray powder before scanning | |||
| Software Included | ExScan Pro, Solid Edge SHINING 3D Edition | |||
| Output Formats | OBJ; STL; ASC; PLY; P3 ; 3MF | |||
| Scanner Body Weight | 1.25kg (include the USB3.0 cable) | |||
| Operating Temperature Range | 0-40℃ | |||
| Operating Humidity Range | 10-90% | |||
| Supported OS | Win10,(64bit) | |||
| Recommended Configuration | Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0 | |||
| Required Configuration | Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G | |||
| [1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm. The conclusion is obtained by measuring the center of sphere under marker alignment. [2]. Select this alignment when scanning objects with rich geometrical features on the surface. [3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically. [4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object. SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information. | ||||
